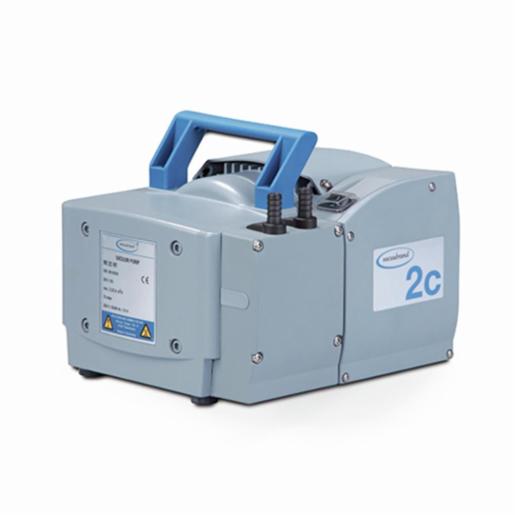

VACUUBRAND Chemistry diaphragm pump ME 2C NT 20730100
VACUUBRAND -- Item TECPIM000157554
Please add to cart & request for quote to see the price
Reserve Now
The VACUUBRAND ME 2C NT (model ME 2C NT, part number 20730100) is a one‑stage chemistry diaphragm vacuum pump designed for continuous, oil‑free pumping of gases and vapors where moderate vacuum is required. It is intended for laboratory applications such as drying ovens, single and multiple filtration setups, and general evacuation or transfer of gases including corrosive media; pumped media contact chemically resistant PTFE components and the pump is delivered completely assembled and ready for use.
Key Features:
- Model: ME 2C NT
- Manufacturer part number: 20730100
- Max. pumping speed (50 Hz): 2.1 m³/h
- Ultimate vacuum: 70 mbar (≈52 torr)
- Rated motor power: 0.18 kW; rated speed 1500/1800 min⁻¹ (50/60 Hz)
- Inlet/outlet connections: hose nozzle DN 8–10 mm
- Weight and dimensions: 10.2 kg; 243 mm (L) × 211 mm (B) × 198 mm (H)
Advantages:
- Oil‑free, one‑stage design eliminates water use and contaminated wastewater while enabling continuous operation
- Chemistry‑grade PTFE membranes and valves provide resistance to corrosive gases and vapors
- Compact, lightweight footprint (10.2 kg) with standardized DN 8–10 mm hose connections for easy integration
- Delivered ready to use, requiring minimal setup and offering proven membrane longevity
Product Details
Overview
| Model | |
|---|---|
| Product Type | Equipment |
| Part Number | 20730100 |
| Brand | VACUUBRAND |
| Gross Dimensions (WxDxH cm) | |
| Net Dimensions (WxDxH cm) | |
| Gross Weight (kg) | 13,100 |
| Net Weight (kg) | 11,100 |
Specifications
More options are available. Please contact us for more information.
