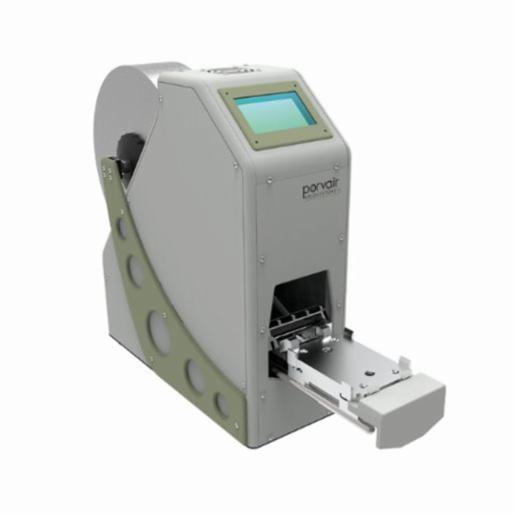

Porvair Sciences Ultraseal™ XT-PRO 250-10011XT

The Ultraseal™ XT-PRO 250-10011XT is an automated heat-applied microplate and tube rack sealer designed to apply a continuous film seal to microplates, tube racks and custom mouldings for assay and storage workflows. The unit pulls a roll of surface-modified aluminium or plastic film (approx. 78 mm wide, 610 m long), cuts it to 125–130 mm and applies a heat seal to create a secure barrier. The system supports shallow and deep-well formats, ANSI-standard plates and vial holders, and is suitable for PCR, qPCR, assay work and storage applications.

Key Features:

• Model: Ultraseal™ XT-PRO
• Part code: 250-10011XT
• Film roll: ~78 mm width, ~610 m length; cut length 125–130 mm
• Sealing throughput: up to 6 plates per minute
• Accepts plates up to 76 mm in height and ANSI-standard plate formats
• Compatibility with plate materials: polypropylene, polyethylene, polystyrene, COC and COP
• Optional features: built-in seal-integrity sensors, gas purge option, password-protected programs

Advantages:

• Delivers a consistent, heat-applied barrier seal to protect samples during assays and storage
• High throughput (up to 6 plates/min) for integration into routine and automated workflows
• Broad plate and film compatibility enables use with shallow/deep wells and multiple plastic substrates
• Built-in sensors and programmable controls improve seal consistency and process reproducibility
• Gas purge option provides an enhanced protective barrier for sensitive applications
