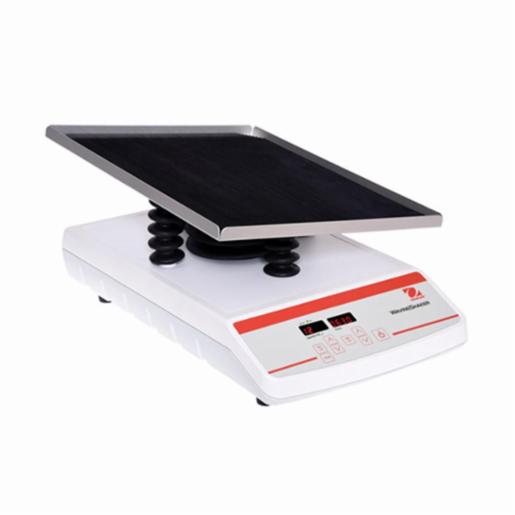

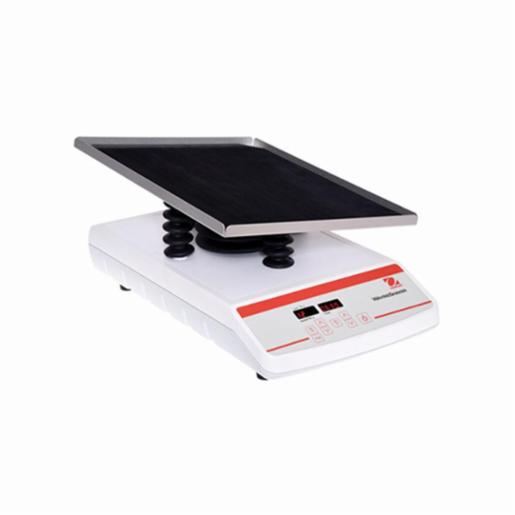

Ohaus Rocking and Waving Shakers SHWV02DG Shaker, Waving, EU 30391949

The Ohaus Rocking and Waving Shaker SHWV02DG is a digital waving shaker designed to provide controlled, smooth, low-foaming 3D wave motion for laboratory mixing applications.

Key Features:

• Model: SHWV02DG
• Part Number: 30391949
• Motion: Waving, 0 - 20° tilt angle
• Speed Range: 1 to 30 rpm with ±1 rpm accuracy
• Capacity: 2.3 kg load bearing
• Tray Size: 11.75 in x 8.75 in (29.9 cm x 22.2 cm)
• Tray Construction: Aluminum
• Dimensions (L x H x W): 17 in x 6 in x 11 in (43.2 cm x 15.2 cm x 27.9 cm)
• Net Weight: 15.2 lb (6.9 kg)
• Power Requirements: 230V, 5A, 50/60Hz
• Power Consumption: 25 W
• Timer Range: 1 second to 160 hours
• Controller Type: Digital with stepper motor drive
• Operating Temperature Range: -10°C to +60°C
• Non-slip rubber mat included on tray
• Electronic tilt adjustment enabled while unit operates
• Displays for speed, tilt angle, and time

Advantages:

• Precise speed control over 1 to 30 rpm enables consistent, reproducible mixing.
• Adjustable tilt angle (0–20°) during operation allows tailored wave motion intensity.
• Moderate 2.3 kg capacity accommodates typical lab vessels ensuring versatile sample handling.
• Digital control with stepper motor drive ensures smooth, low-foaming 3D wave motion favorable for sensitive applications.
• Timer from 1 second up to 160 hours supports flexible mixing durations for varied protocols.
• Non-slip mat secures labware, reducing risks of spills and improving safety.
• Compact, lightweight design facilitates placement in diverse lab settings and environments.
• Operation within -10°C to +60°C suits use in different environmental and CO2 incubator conditions.
