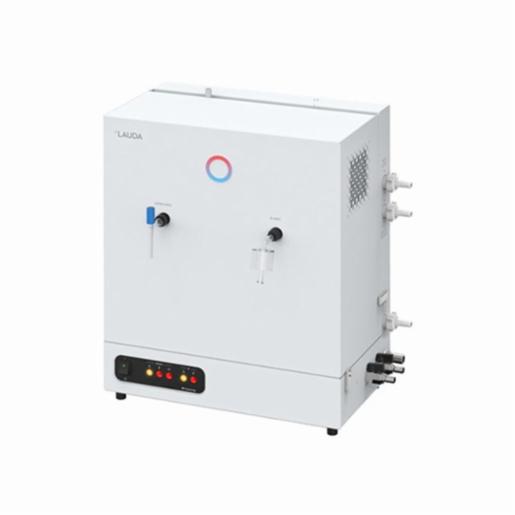

LAUDA Puridest PD 4 DWater still 400 V; 3/N/PE; 50/60 Hz L003247

LAUDA Puridest PD 4 D Water still 400 V; 3/N/PE; 50/60 Hz Features: Water Still (fully automatic) for double distillation, suitable for both bench and wall mounting Main switch with pilot lamp for the monitoring of both distillation stages at the front of the unit Valve made of Borosilicate glass 3.3 with PTFE plunger for single distillate Outlet with dust guarde shield made of Borosilicate glass 3.3 for double distillate Condenser (cooling coil) 1st stage made of stainless steel Condenser (cooling coil) 2nd stage including the baffle made of DURAN® Borosilicate glass 3.3. Solenoid valve to control the water supply Economical energy consumption by distillation of the heated cooling water. Water saving through automatic water cut-off. Unnecessary water consumption will be avoided. Evaporator easily accessible for cleaning purposes. CO2 degassing through outlet in the condenser. Electronic contamination monitoring of the still with distillation stop and visual cleaning instruction Electronic level control during the whole distilling process. Double-action low water cut-off through float switch and thermostatic safety switch. Heating element and evaporator made of stainless steel. Housing made of galvanised sheet steel, powder coated Double-walled housing Options included: With external level switch for monitoring the filling level of a separate storage tank Technical Features: Conductivity stage 1 /25 °C: 2.2 µS/cm Conductivity stage 2 /25 °C: 1.6 µS/cm Production output: 4 L/min Heater power max.: 7 kW Power consumption max.: 7 kW Cooling water flow rate: 2 L/min Maximal pressure cooling water: 7 bar Wasserkühlung Zulauf für Schlauch: 1/2 " Overall dimensions (WxDxH): 550 x 280 x 570 mm Ambient temperature range: 10 ... 40 °C Power supply: 400 V; 3/N/PE; 50/60 Hz Power plug: Power cord with plug (IEC 60309, 5-pol, CEE, red, 16 A)
