LAUDA Puridest PD 2 RWater still 230 V; 50/60 Hz L003220

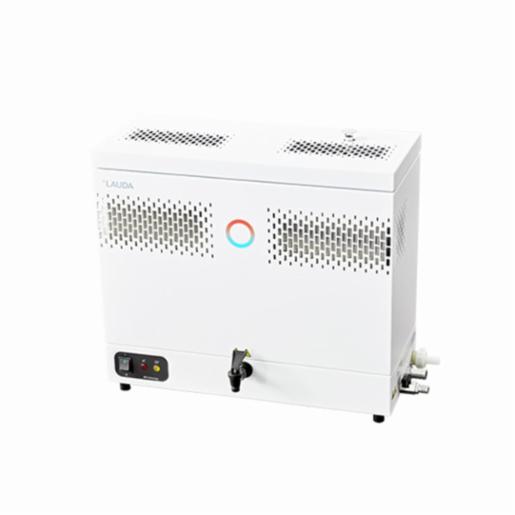

LAUDA Puridest PD 2 R Water still 230 V; 50/60 Hz Features: Water Still for single distillation (fully automatic) with storage tank, suitable for both bench and wall mounting The distillate storage tank accepts twice the hourly capacity of the still Distillate withdrawal through drain cock with continuous and touch position. Condenser (cooling coil) inside the storage tank, easily exchangeable. Solenoid valve to control the water supply Economical energy consumption by distillation of the heated cooling water. Water saving through automatic water cut-off. Unnecessary water consumption will be avoided. Evaporator easily accessible for cleaning purposes. CO2 degassing through outlet in the condenser. Electronic contamination monitoring of the still with distillation stop and visual cleaning instruction Automatic refill of the storage tank after distillate removal, controlled by electronic level detection Thermostatic low water cut-off Heating element, evaporator, storage tank and condenser made of stainless steel. Housing made of galvanised sheet steel, powder coated Double-walled housing Technical Features: Conductivity stage 1 /25 °C: 2.3 µS/cm Production output: 2 L/min Tank volume: 4 L Heater power max.: 1.5 kW Power consumption max.: 1.5 kW Cooling water flow rate: 0.5 L/min Maximal pressure cooling water: 7 bar Wasserkühlung Zulauf für Schlauch: 1/2 " Wasserkühlung Ablauf für Schlauch: 3/4 " Overall dimensions (WxDxH): 540 x 290 x 420 mm Ambient temperature range: 10 ... 40 °C Power supply: 230 V; 50/60 Hz Power plug: Power cord with angled plug (BS1363)
