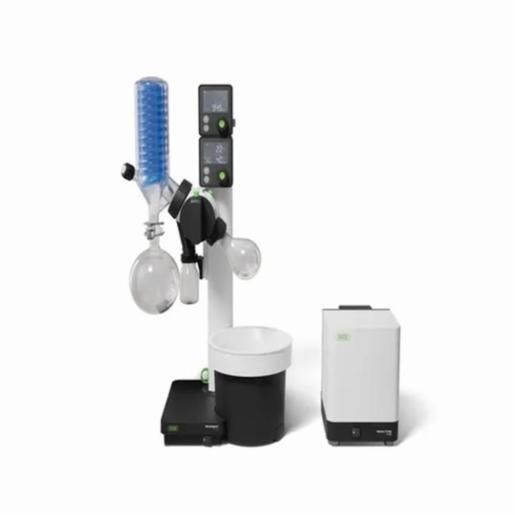

Buchi Rotavapor R-80 with V-180 vacuum pump and I-180 controller 11SR0801V201
BUCHI Labortechnik AG -- Item TECPIM000536471
RM25,819.00
Stock Available
Evaporation on the smallest footprint
Meet the R-80, Buchi’s most energy-efficient Rotavapor® to date and the most compact Rotavapor® on the market. The R-80 is an affordable and eco-friendly solution that ensures the most efficient use of lab space while meeting BUCHI’s high-quality standards.
- Evaporating flask size:up to 1000 mL
- Footprint (W x D):345 x 315 mm
- Temperature range:up to 95 °C
Why compromise when you can have the best of both worlds? The R-80 comes at an affordable price while delivering BUCHI quality. We're proud to offer Swiss design and precision backed by exceptional customer support and expert application know-how. Elevate your performance and trust in a brand that values excellence above all.
| Specification | Value |
| Dimensions (W × D × H) | 345 mm × 315 mm × 590 mm |
| Weight with condenser | 9 kg |
| Connection voltage | 100 − 120 VAC ± 10% / 220 − 240 VAC ± 10% |
| Frequency | 50 / 60 Hz |
| Power consumption | 1,150 W |
| Fuse | T 12.5 A H 250 V (100 − 120 V) / T 6.3 A H 250 V (220 − 240 V) |
| Overvoltage category | II |
| IP Code | IP42 |
| Pollution degree | 2 |
| Minimum clearance on all sides | None |
| Display type | 3" Dark segment display |
| Heating power | 1,000 W |
| High temperature cut-out | 140 °C |
| Heating bath temperature range | Up to 95 °C |
| Heating bath adjustment accuracy | ± 1 °C |
| Heating bath regulation precision | ± 2 °C |
| Heating bath inner diameter | 175 mm |
| Heating bath capacity | 2 L |
| Heating bath fluid | Water |
| Typical heating-up time (20°C to 95°C) | 14 min |
| Max. flask size | 1,000 mL |
| Max. flask capacity | 800 g |
| Immersion angle | 20 – 50° |
| Rotation speed range | 10 – 330 rpm |
| Adjustable lift height | 180 mm |
| Cooling surface (V condenser) | 1,280 cm² |
| Cooling temperature display range | -99 – 99 °C |
| Certificate | CB, CE, UL / CSA |
Product Details
| Model | R-80 V-180 |
|---|---|
| Product Type | Bundle |
| Part Number | 11SR0801V201 |
| Brand | BUCHI Labortechnik AG |
| Gross Dimensions (WxDxH cm) | |
| Net Dimensions (WxDxH cm) | |
| Gross Weight (kg) | |
| Net Weight (kg) | 22.36 |
| Standard Taper Joint | 29/32 |
|---|---|
| Condenser Type | Vertical Coil |
| Interface | I-180 |
| Vacuum Pump | Yes |
| Recirculating chiller | No |
BUCHI Labortechnik AG
What started as a craftsman’s workshop over 80 years ago has grown into a global glass, mechatronics, and technology company offering fully automated laboratory technology solutions, proprietary software, and application expertise. BUCHI’s high-quality laboratory instruments are manufactured to exacting standards using streamlined processes. The company’s headquarters are in Eastern Switzerland with R&D, production, sales and service facilities worldwide.
